Grate and Grid Magnets
The grate magnets and grid magnets from Magnattack® enable products to cascade through a series of high-strength magnetic bars, ensuring effective magnetic contaminant removal and enhanced product safety.
Overview

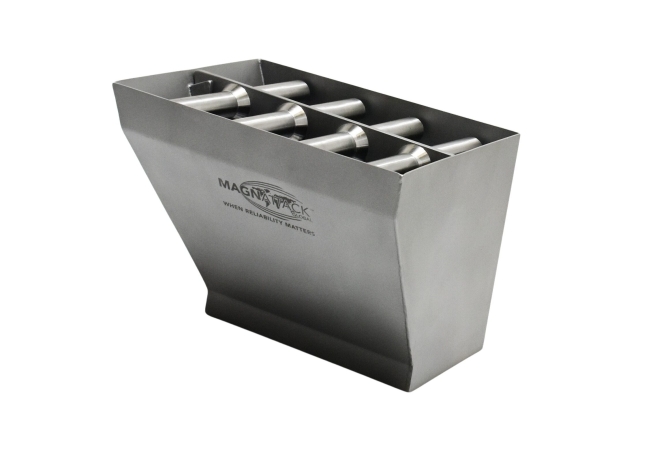

Magnattack® Grate and Grid Magnets are designed to capture magnetic fragments from hoppers, chutes, ducts, and packaging outlets. Their grate or grid design allows products to cascade over powerful magnetic bars, ensuring direct contact for effective product safety and the secure retention of contaminants. Magnattack offers a variety of grate magnets, including center-support style grates, square, circular, and rectangular configurations, as well as enclosed grates. For optimal performance, factors such as product type, flow rate, and contamination type should be considered when selecting bar diameter, spacing, construction, abrasion resistance, hygiene, and other key specifications.
Key Features and Benefits:
- Certified to +10,000 gauss with 22 mm pole centers along each bar for extraction of weakly magnetics
- Pole diameters up to 15.75” (400 mm)
- No frame options – easy cleaning and less obstruction to flow
- Lightweight and safe for operators to handle, remove and clean
Applications
- Dry products such as coffee, rice, grain, flour, seeds, sugar and spices
- Wet products such as fruit, vegetables, salad mixes and coleslaws
- Free-flowing products
- Chutes/ducts
- Packing outlets
- Dairy-Grade models available for sensitive dairy and pharmaceutical powder applications
Install Options

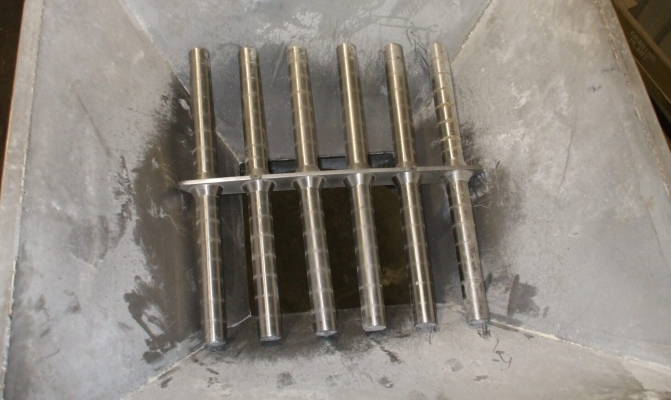

- Lift out style for conical hoppers and outlets accessible from above
- Sifter discharges
- Before high impact and damage susceptible machinery – may be used to reduce risk and dust explosion caused by high impact machinery
- Inlet/outlet of hoppers
- Base of chutes/ducting
- Above packers on packing outlets
Certifications
- Certified by HACCP International. Fully compliant with HACCP International Food Safety Standard 0909MAGSEP 2-2021
- CE Mark
Accessories
Rapidclean® Cleaning Tool
The Magnattack® Rapidclean Cleaning Tool is a quick and efficient solution for removing contaminants from grate and grid magnets. Its user-friendly design ensures fast, safe, and thorough cleaning, minimizing downtime and maintaining optimal system performance.
Need Accessories or Replacement Parts?
If you need accessories or replacement parts for your Magnattack® equipment, simply reach out to our team for assistance. Contact us through our website or give us a call to discuss your specific needs, and we’ll ensure you receive the right parts quickly to keep your systems running smoothly.Contact Our Team
Need Safety Stickers or Signs?
Request safety labels and warning signage for your Magnattack® equipment by contacting our team today.Contact Our TeamYour Questions Answered:
Grate and Grid Magnets
We understand that choosing the right product is an important decision, and you may have questions along the way. This FAQ section is here to provide clear, concise answers to the most common questions about the Grate and Grid Magnets.
Whether you’re looking for details about its features, installation, maintenance, or troubleshooting, we’ve got you covered. If you don’t find what you’re looking for, feel free to reach out to our team—we’re always here to help!
Explore the FAQs below to get started.
What sizes do these come in?
Typically, Grate magnets will come in whatever size is required. Common sizes are 10″ x 10″ (250 mm), 12″ x 12″ (300 mm), 14″ x 14″ (355 mm), and 16″ x 16″ (405 mm) to name a few.
Is a push tool available for cleaning?
Depending on the design, a push tool and cleaning tray can be provided to enhance cleaning efficiency, particularly in high-abrasion environments where the product is prone to binding, buildup, or stickiness. These tools minimize unhygienic hand contact and reduce the risk of injuries from sharp metal fragments.
Is the RE80 Technology available with Magnattack grate magnets?
Yes! Our grate and grid magnets are available in our RE80 magnet technology with 10,000 gauss to ensure high-strength and quality.
What shapes and sizes are available?
We design our products to meet specific application needs, allowing us to custom-build a grate or grid magnet with RE80 technology tailored to your unique requirements. Additionally, we offer square/rectangular and circular grate magnets in RE80 options.
