Pressure Pipeline Separator
The Pressure Pipeline Separator from Magnattack® is designed to effectively capture metal contaminants from liquid and semi-liquid products in high-pressure pipelines. Its high-strength magnetic elements ensure contaminants are securely trapped, even in challenging processing environments, helping to maintain product purity and meet industry standards.
Overview
The Magnattack® Pressure Pipeline Separator is designed to efficiently remove magnetic fragments, including work-hardened stainless steel, from liquid food products such as soups, chocolate, sauces, and dairy. The system is equipped with one or two high-powered RE80®HT +11,000 gauss magnet elements that intercept the product flow and securely retain metal contaminants, safeguarding both processing equipment and final product quality.
The design of the Pressure Pipeline Separator will eliminate bent pot magnet probes and struggles with cleaning them, and is a more efficient and effective solution when compared to conventional Liquid Trap Magnets (Pot Magnets).
Key Features and Benefits:
- Large diameter RE80® Magnet Probes at right angles/90 degrees offer a cross section of magnetic force across the aperture of the magnet housing, allowing for optimum product-to-magnet contact for unmatched separation efficiency
- High-intensity RE80®HT magnet elements operate at peak strength in high-temperature liquid and CIP applications, enduring temperatures up to 302°F (150°C)
- Probe port & drain available for horizontal installations
- Locking access tabs for operator safety
- Variety of sanitary inlet/outlet fittings are available
- Magnets can easily be removed for convenient cleaning
- Engineered to increase product purity and food safety
- Jacketted designs are available for heated product lines such as chocolate
- Available in 316L stainless steel, AL6XN and alloy C22 for highly aggressive and acidic products
Applications
- Products with lumps up to 0.4″ (10 mm)
- Liquid products such as syrup, chocolate, soup, sauce, beverages, ice cream manufacturing, cheese processing, brine, fruit juice and food paste
Install Options
- Suitable for pipelines ranging from 1″ to 8″ (25 mm – 200 mm) in diameter
- Incoming product/ingredient intakes
- Prior to processing equipment such as pumps, homogenizers, blenders and mixers
- Final product prior to packaging
Certifications
- Certified by HACCP International. Fully compliant with HACCP International Food Safety Standard 0909MAGSEP 2-2021
- CE Mark
Brochures
Accessories
Need Accessories or Replacement Parts?
If you need accessories or replacement parts for your Magnattack® equipment, simply reach out to our team for assistance.Contact Our Team
Need Safety Stickers or Signs?
Request safety labels and warning signage for your Magnattack® equipment by contacting our team today.Contact Our Team“We’ve had several PPS units in our liquid lines for many years now, in multiple processing plants across the country. They’re more effective than the old pot-style magnets, easy to clean, and don’t cause any leaks or blockages. Never had any problems with them. Simple, yet very effective.”
Case Study

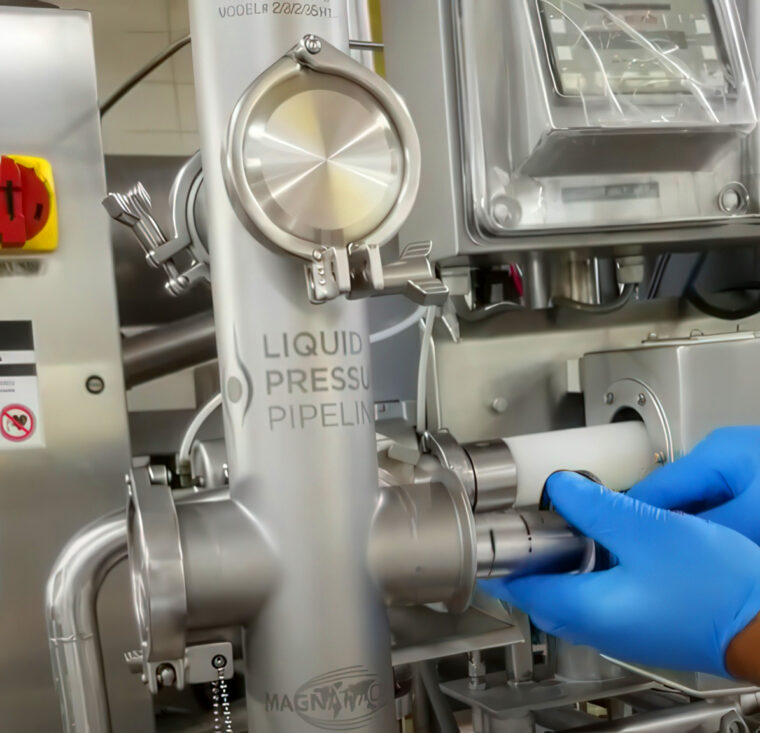

Pressure Pipeline Separators to the Rescue for Food Packaging Manufacturer
Magnattack Global provided custom-built RE80® Liquid Pressure Pipeline Magnets to a U.S. food packaging manufacturer, helping them prevent costly contamination by effectively capturing metal fragments in their production process.
Your Questions Answered:
Pressure Pipeline Separator
We understand that choosing the right product is an important decision, and you may have questions along the way. This FAQ section is here to provide clear, concise answers to the most common questions about the Pressure Pipeline Separator.
Whether you’re looking for details about its features, installation, maintenance, or troubleshooting, we’ve got you covered. If you don’t find what you’re looking for, feel free to reach out to our team—we’re always here to help!
Explore the FAQs below to get started.
What is the average weight of a complete unit?
Average weight of 44 lbs (20 kg) but varies based on the unit being installed.
Can the probes withstand high temperature applications or processes?
Magnattack RE80®HT models can withstand product and CIP cleaning temperatures up to 302°F/150°C.
Why do the magnet probes go right through the housing and into the port opposite?
There is a very good reason for this. The first high-strength pole of the magnet is aligned directly with the inner wall of the housing. This configuration ensures that if a probe is inserted from the top, any weakly magnetic metal fragment moving along the bottom of the line is likely to make direct contact with the effective working area of the magnet, thereby increasing the chances of capture.
Why choose a Pressure Pipeline Separator over a Pot Magnet?
There are several reasons why a single probe pressure pipeline separator is better than a pot magnet with multiple finger probes. It is easier to clean a single probe than a pot magnet. It is difficult to see all metal fragments on a pot magnet with multiple probes. A single magnet probe from Magnattack provides the same, if not stronger, magnetic strength as a multi-probe pot magnet.
What is the average weight of a magnetic probe?
3.3 lbs to 10 lbs (1.5 kg – 4.5 kg) depending on the size of the probe.
