Rapidclean® Tubular Magnetic Separator
The Rapidclean® Tubular Drawer Magnetic Separator is a hygienic, space-saving solution for low-flow gravity applications, designed to capture contaminants effectively with minimal maintenance and reduce the risk of recontamination.
Overview
The Rapidclean® Tubular Drawer Magnet is an economical and space-saving solution, ideal for low volume, low flow-rate gravity applications in space-restricted areas.
Our patented design addresses common issues found with conventional drawer magnet technology. It is extremely hygienic, thanks to the absence of sleeves which can trap unclean residue, and features a sanitary, dust-tight housing. With single-bar cleaning, it prevents drawer jamming—an issue typical of multi-bar, sleeved designs. Operators can fully inspect the magnet bars before returning them to the product flow, ensuring optimal hygiene and reducing recontamination risks.
This low-maintenance solution is easy to inspect and effective in capturing weakly magnetic contaminants such as work-hardened stainless steel fragments, magnetic stone, dust, and fine magnetic particles. Cleaning occurs away from the product zone, reducing the risk of recontamination, while the Rapidclean Cleaning Tool aids in the safe removal of metal fragments.
Key Features and Benefits:
- Powerful RE80® Magnets certified to +11,000 gauss
- Sanitary design offering versatility
- Quick-release magnetic door closure provides even door seal pressure to prevent leaks and powder spillage
- Removable magnetic drawer for easy cleaning away from product stream
- Withstands cleaning and product temperatures up to 302°F (150°C)
- Larger diameter bars maximize removal of weakly metals in the process, such as rust, work-hardened stainless steel, magnetic stone and ferrous tramp metal
- Dura-Slik® Abrasion-Reduction Technology option is available to reduce wear in abrasive applications
- Non-magnetic ends protected from product flow
Applications
- Dry ingredients such as flour, rice, and grain mills, sugar production, coffee processing, starch processing, bulk out-loading and manufacturing of ingredients
- USDA acceptance certification models for dairy and lactose powders, pharmaceutical powders, infant formulas and other sensitive products
Install Options
- Dry material intakes
- Before expensive and high impact processing equipment
- Blender, elevator and screw conveyor discharges
- Inlet to rotary valves
- Upstream of super sack filling
- Upstream of metal detectors on final product
- An optional removable stainless steel screen drawer is available to filter out large, non-magnetic contaminants from the product flow, promoting consistent product distribution and minimizing abrasion effects
Certifications
- Certified by HACCP International. Fully compliant with HACCP International Food Safety Standard 0909MAGSEP 2-2021
- USDA Acceptance Certification is available
- FDA
- CE Mark
Brochures
Accessories

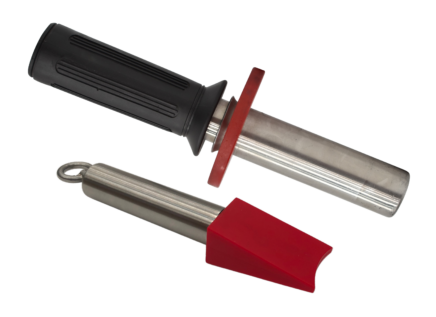

Rapidclean® Cleaning Tool
The Magnattack® Rapidclean Cleaning Tool is a quick and efficient solution for removing contaminants from grate and grid magnets. Its user-friendly design ensures fast, safe, and thorough cleaning, minimizing downtime and maintaining optimal system performance.
Rapidclean® Cleaning Tray
The Rapidclean Cleaning Tray provides a safe and efficient way to collect and dispose of metal contaminants during magnet cleaning, ensuring easy and sanitary handling.
Need Accessories or Replacement Parts?
If you need accessories or replacement parts for your Magnattack® equipment, simply reach out to our team for assistance. Contact us through our website or give us a call to discuss your specific needs, and we’ll ensure you receive the right parts quickly to keep your systems running smoothly.Contact Our Team
Need Safety Stickers or Signs?
Request safety labels and warning signage for your Magnattack® equipment by contacting our team today.Contact Our TeamYour Questions Answered:
Rapidclean Tubular Magnetic Separator
We understand that choosing the right product is an important decision, and you may have questions along the way. This FAQ section is here to provide clear, concise answers to the most common questions about the Rapidclean Tubular Magnetic Separator.
Whether you’re looking for details about its features, installation, maintenance, or troubleshooting, we’ve got you covered. If you don’t find what you’re looking for, feel free to reach out to our team—we’re always here to help!
Explore the FAQs below to get started.
How are the magnets cleaned in a Rapidclean Tubular Magnet?
The drawer is removed from the housing, and similar to the Magnattack Rapidclean Drawer magnet, the included cleaning tool is used to push contaminants along the length of the bar to the non-magnetic end, where it connects to the door.
What applications would benefit the most from a Rapidclean Tubular Magnet?
These are ideal for tubular and round pipe applications where space is constrained, allowing a square unit to be adapted for use with tubes or pipes. It isn’t necessary to use transition adaptors sections, thus saving valuable space.
What size does the Rapidclean Tubular Magnet come in?
The Rapidclean Tubular Magnet is available to suit a range of spouting or chute applications from 4″ to 14″ (102 mm to 356 mm) in diameter. Several magnet configurations are available to meet the demand of specified flow rate, density and particle size. In some cases, magnets staggered over multiple rows.
What is the significance of the cone on the end of the magnet bar?
The cone at the end of the magnet bar provides structural support for longevity of the magnet strength. The base cone also aids the cleaning process, as this shape allows contaminants to be pushed up onto the low strength area of the cone where they can be released from the magnet during cleaning.
Why are the bars of this magnet only mounted on one end?
Magnattack incorporates its exclusive Rapidclean principle, making it compatible with the Rapidclean wiper tool. This allows contaminants to be pushed along the length of the bar to the non-magnetic fixed end using the specially provided cleaning tool. The main objective is to streamline the cleaning process, offering a more efficient solution than traditional rotary-style magnets, while minimizing direct operator contact with the magnet’s working surface.
What is the weight of the Rapidclean Tubular magnetic separator?
Depending on unit size, the weight ranges from 18 lbs up to 121 lbs (8 kg up to 55 kg) for the larger multiple row design.
